Tumut NSW

Scope of Works

Design, fabrication and delivery of FRP Chemical and Process Tanks

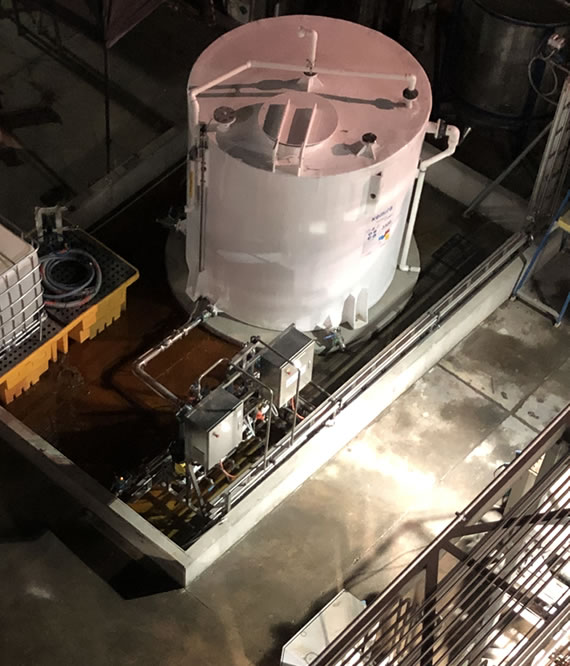

• 1 off 65KL Sodium Hypochlorite Storage Tanks
  Double-walled Configuration
  Internal Dimensions - 2800mm Dia x 10,700mm Overall Height
  External Dimensions - 3000mm Dia x 10,700mm Overall Height
  Vinyl Ester Throughout with a BPO Corrosion Barrier
  Painted Access Ladder & Handrail
• 1 off 10KL Sodium Hypochlorite Storage Tanks
  Double - walled Configuration
  Designed and Fabricated to BS-EN 13121
  Internal Dimensions - 2400mm Dia x 2,300mm Overall Height
  External Dimensions - 2500mm Dia x 2,300mm Overall Height
  Vinyl Ester Throughout with a BPO Corrosion Barrier
